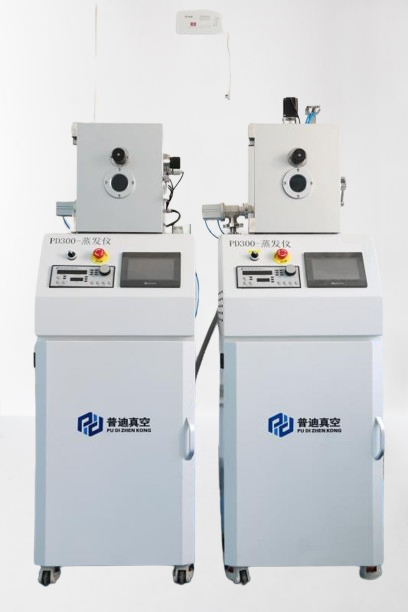

PD-300
PUDI
8419899090-1
Wuhan Pudi Vacuum Technology Co., Ltd is a professional designer and manufacturer of high-quality tailor-made thin film deposition Systems,core team with 22 years of experience in in the fields of machinery, electronics, materials, vacuum, etc. Our research and development team,mainly from academic scientists and qualified engineers,helpfully supports and advises customers in choosing the proper system for their speical needs,equipment installation and training,and steady and fast after-sales services.
For Thermal Evaporation Coater,the typical models including:
| MODEL | PD-200 | PD-300 | PD-400 | PD-400S | PD-450S | PD-500S | PD-800S |
| Application | It is widely used in the fields of education and scientific research, including metal electrode layer preparation and new energy material research. The same applies to early experiments in corporate new product development. In scientific research institutes and laboratories, it is often used for evaporation electrodes, scanning electron microscope sample preparation, and research on OLEDs and solar cells. | ||||||
| Materials | Metal and organic thin film materials | Deposit metals (Au, Ag, Al, Ca, Cu, Mg, Fe, Cr, Ni, etc.), non-metals, compounds (MoO3, LiF, etc.) and organic materials, and can expand the deposition of single-layer films, multi-layer films and mixed films. | Can be plated with gold, silver, titanium, chromium, molybdenum SiO2/ITO/AZO/nickel oxide and other materials. | ||||
| Device Size （L×W×H ) | 500×360×420mm | 500×750×1800mm | 850×1500×900mm | 950×780×1900mm | 950×830×1900mm | 1200×950×2000mm | 1850×870×2100mm |
| Chamber Size | Φ260×H310mm Cylindrical | 300×300×400mm | 350× 350×450mm | 400×400×460mm | 450×400×550mm | 500×500×500mm | 800×700×700mm |
| (L×W×H) | |||||||
| Ultimate Vacuum | Less than 5×10-5Pa | Less than 5×10-5Pa | Less than 5×10-5Pa | Less than 2×10-5Pa | Less than 2×10-5Pa | Less than 3×10-5Pa | Less than 3×10-5Pa |
| Pumping speed | 5×10-4≤30min | 9×10-4≤40min | 8×10-4≤30min | 5×10-4≤20min | 5×10-4≤20min 12H≤5pa | 5×10-4≤25min 12H≤5pa | 2×10-3≤30min 12H≤5pa |
| Keep pressure | 12H≤10pa | 12H≤10pa | 12H≤10pa | 12H≤5pa | |||
| Unifimity | Film Thickness Unifimity≤ ±5%，Repeatability ≤ ± 5% | ||||||
| Substrate Size | 80mm×80mm | 100mm×100mm | 150mm×150mm | 150mm×150mm | 200mm×200mm | 200mm×200mm | 350mm×350mm |
| Evaporation Sources | 1 or 2-Pocket | 2 or 3-Pocket | 4 or 6-Pocket | 4 or 8-Pocket | 4 or 8-Pocket | 4 or 8-Pocket | 4 or 8-Pocket |
| System Control | Siemens Touch Screen Automatic PLC control and manual operation;System monitoring,alarm and process menu editing;Process menu can be set accordingly to the preset work step mode;Real time data record;Alarm and safty control | ||||||
The system adopts large pumping speed molecular pump oil free high vacuum system, vacuum mechatronics design, covers a small area (length × width: 550×900 mm) save laboratory space, metal evaporation source and organic evaporation source can be compatible, cost-effective, easy to operate. Widely used in research institutes, laboratory evaporation electrode, SEM sample preparation, as well as OLED, solar cell research.
More Infos about PD-300

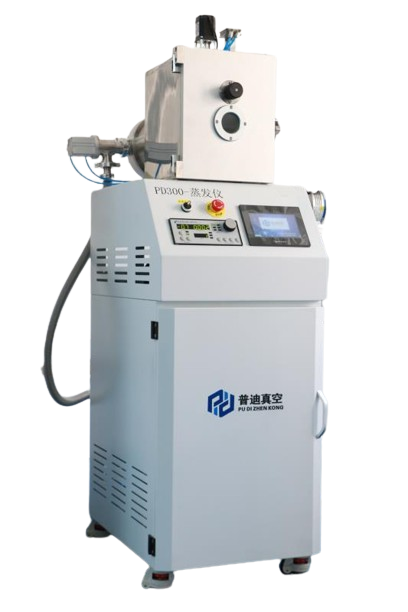

| Name | PD-300 High vacuum resistance evaporation coating equipment |
| Vacuum Chamber | 300×300×H450 mm |

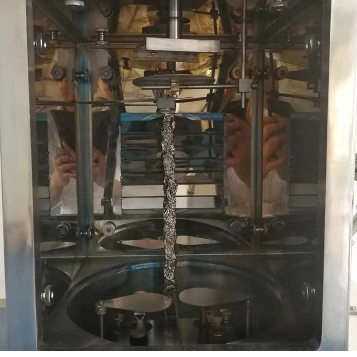

| 304 stainless steel vacuum chamber, vertical front door opening structure; Lined with antifouling plate. | |
| Vacuum system | Molecular pump + mechanical pump |
| Ultimate vacuum | Better than 5×10-5 Pa |
| Restore vacuum time | Reach 5×10-4 Pa≤25 min |
| Metal evaporation source | 2-3 sets of evaporation sources, optional. |
| Organic evaporation sources | Beam source furnace organic evaporation source with controlled temperature 0-500 ℃ adjustable, integrated baffle adjustable Angle (0-15 ° ), 2-3 groups of evaporation sources, optional. |
| Electric control system | Manual logic button control or PLC touch screen control is optional; Perfect logic program interlock protection and abnormal alarm. |
| Optional | Cooling circulating water dispenser/inlet film thickness monitor/substrate table heating or water cooling/Chamber lamp baking/mask plate mask/ Evaporation power supply/tungsten boat Molybdenum boat |
| Power distribution for equipment | Voltage: AC220 V/50 HZ (380 V optional) |
| Power: ≤6 KW | |
| Equipment size | Length x width: 1100 mm x 750 mm x 1500 mm |
| Manufacturer | PUDI VACUUM |
